Sawink's range of indoor LED videowalls offer unparalleled choice, versatility and flexibility in specifying high-performance video walls.
Our professional grade LED video walls are ideal for indoor applications such as control rooms, hospitality, retail, entertainment or corporate. Choose from award-winning premium options for critical viewing or affordable, high-performance options to engage and entertain customers for a spectacular viewing experience.
An indoor LED video wall is a dynamic and high-resolution display system comprised of multiple LED panels seamlessly tiled together to create a large, vibrant visual canvas. These video walls are designed for indoor use and are commonly found in various settings, including conference rooms, retail stores, control centers, event venues, and more. They serve a wide range of purposes, from delivering engaging advertising content to enhancing presentations and providing real-time information.
High-Resolution Displays: Indoor LED video walls offer exceptional image clarity and resolution, making them ideal for displaying detailed graphics, videos, and text.
Brightness and Color: These displays are engineered to produce vivid and bright visuals, ensuring that content remains sharp and eye-catching even in well-lit indoor environments.
Seamless Integration: LED panels are meticulously aligned to create a nearly seamless visual experience, providing a uniform and polished look.
Scalability: Indoor LED video walls can be customized to fit various sizes and aspect ratios, making them versatile for different spaces and purposes.
Remote Control: Many systems are equipped with remote control and management capabilities, enabling content updates and scheduling from a central control station.
Durability: Quality LED video walls are designed to be long-lasting and are often built with rugged, heat-resistant components.
Energy Efficiency: LED technology is energy-efficient, helping to reduce power consumption while maintaining high-quality visuals.
Content Flexibility: These displays can showcase a wide array of content, from dynamic advertisements to real-time data feeds, enabling businesses to convey messages effectively.
Customization: Indoor LED video walls can be tailored to match the aesthetics of the space in which they are installed, with options for different panel sizes and bezel widths.
Indoor LED video walls have become a central tool in modern business communication and marketing strategies, offering a visually striking and versatile medium to convey messages, share information, and create immersive experiences for audiences. Whether for corporate boardrooms, retail spaces, or entertainment venues, these video walls provide a powerful and captivating way to capture attention and engage viewers.

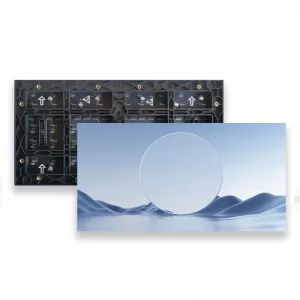

P1.25 Small-Pitch Full-Color LED Display
Pixel pitch: ≤1.25mm
Pixel density: ≥640,000 dots/㎡
Module size: 320mm × 160mm
Module resolution: ≥256 × 128
Brightness (cd/㎡): 500, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥3840Hz
Frame rate: 60Hz
Module power consumption: ≤27W
Peak power consumption: ≤547W
Lifespan: ≥200,000 hours

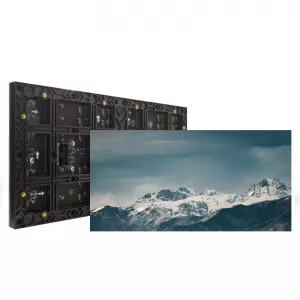

P1.53 Small-Pitch Full-Color LED Display
Pixel pitch: ≤1.53mm
Pixel density: ≥422,753 dots/㎡
Module size: 320mm × 160mm
Module resolution: ≥208 × 104
Brightness (cd/㎡): 500, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥3840Hz
Frame rate: 60Hz
Module power consumption: ≤17W
Peak power consumption: ≤331W
Lifespan: ≥200,000 hours

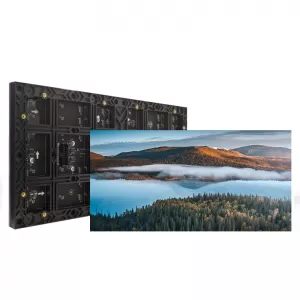

P1.667 Small-Pitch Full-Color LED Display
Pixel pitch: ≤1.667mm
Pixel density: ≥360,000 dots/㎡
Module size: 320mm × 160mm
Module resolution: ≥192 × 96
Brightness (cd/㎡): 500, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥3840Hz
Frame rate: 60Hz
Module power consumption: ≤20W
Peak power consumption: ≤390W
Lifespan: ≥200,000 hours

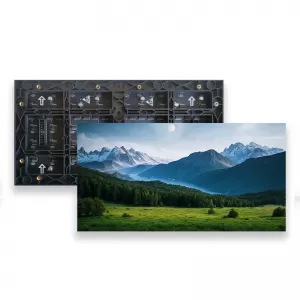

P1.86 Small-Pitch Full-Color LED Display
Pixel pitch: ≤1.86mm
Pixel density: ≥288,906 dots/㎡
Module size: 320mm × 160mm
Module resolution: ≥172 × 86
Brightness (cd/㎡): 500, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥3840Hz
Frame rate: 60Hz
Module power consumption: ≤18W
Peak power consumption: ≤352W
Lifespan: ≥200,000 hours

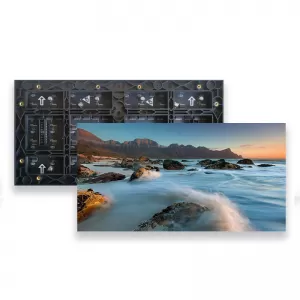

P2.0 Small-Pitch Full-Color LED Display
Pixel pitch: ≤2mm
Pixel density: ≥250,000 dots/㎡
Module size: 320mm × 160mm
Module resolution: ≥160 × 80
Brightness (cd/㎡): 500, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥3840Hz
Frame rate: 60Hz
Module power consumption: ≤14W
Peak power consumption: ≤273W
Lifespan: ≥200,000 hours

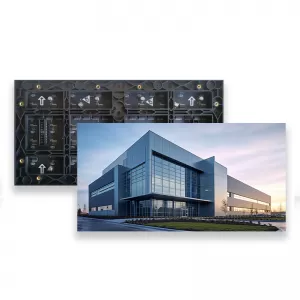

P2.5 Small-Pitch Full-Color LED Display
Pixel pitch: ≤2.5mm
Pixel density: ≥160,000 dots/㎡
Module size: 320mm × 160mm
Module resolution: ≥128 × 64
Brightness (cd/㎡): 600, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥3840Hz
Frame rate: 60Hz
Module power consumption: ≤21.5W
Peak power consumption: ≤419W
Lifespan: ≥200,000 hours

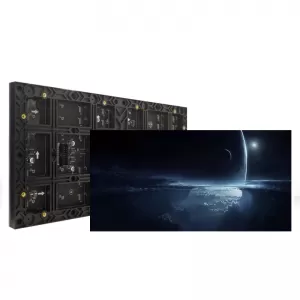

P3 Small-Pitch Full-Color LED Display
Pixel pitch: ≤3mm
Pixel density: ≥111,111 dots/㎡
Module size: 320mm × 160mm
Module resolution: ≥64 × 64
Brightness (cd/㎡): 700, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥1920Hz
Frame rate: 60Hz
Module power consumption: ≤16W
Peak power consumption: ≤456W
Lifespan: ≥200,000 hours

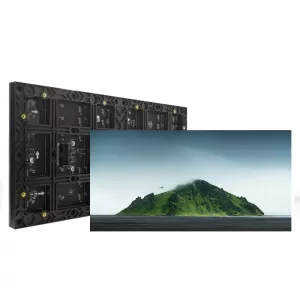

P3.91 Small-Pitch Full-Color LED Display
Pixel pitch: ≤3.91mm
Pixel density: ≥65,536 dots/㎡
Module size: 250mm × 250mm
Module resolution: ≥64 × 64
Brightness (cd/㎡): 1200, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥1920Hz
Frame rate: 60Hz
Module power consumption: ≤32W
Peak power consumption: ≤512W
Lifespan: ≥200,000 hours
LED Video Walls stand out due to their seamless design in control rooms, conference rooms, corporate lobbies, simulation and visualization, broadcast studios, museums and galleries, auditorium installations, airports, train stations, bus terminals and bars. LED video walls are also scalable, making them ideal for large installations.
LED video walls are a powerful, versatile display solution that offers high brightness, contrast and realistic color reproduction. LED video walls offer brighter, more vibrant colors than LCD video walls.
You also get wide viewing angles, a seamless display, and a longer lifespan than LCDs.
Because you can set up LED splicing blocks in custom configurations and sizes, they provide you with a seamless display that fits your video wall project.
Choosing the right size and resolution for your LED video wall depends on several factors. The first is viewing distance, which helps determine pixel pitch targets and costs.
Other factors to consider include the intended use of the video wall, whether it is an indoor or outdoor application, the available space, your environment and your budget.
Proper maintenance of your LED Video Wall is critical to ensure longevity and optimal performance.
Maintenance requirements include temperature checks, humidity control, and regular cleaning with a soft bristle brush or moisture-free compressed air. Regular calibration and preventative checks are also important to avoid any bad spots.
With Sawink's LED video walls, you get advanced system monitoring to detect impending failures and calibration issues.
Maintenance and repair procedures may vary depending on the specific make and model of your LED video wall. Always refer to the Sawink's guidelines and user manuals for the most accurate information on maintaining and repairing your particular system.
