Pixel pitch: ≤2mm
Pixel density: ≥250,000 dots/㎡
Module size: 320mm × 160mm
Module resolution: ≥160 × 80
Brightness (cd/㎡): 500, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥3840Hz
Frame rate: 60Hz
Module power consumption: ≤14W
Peak power consumption: ≤273W
Lifespan: ≥200,000 hours
Video Displays

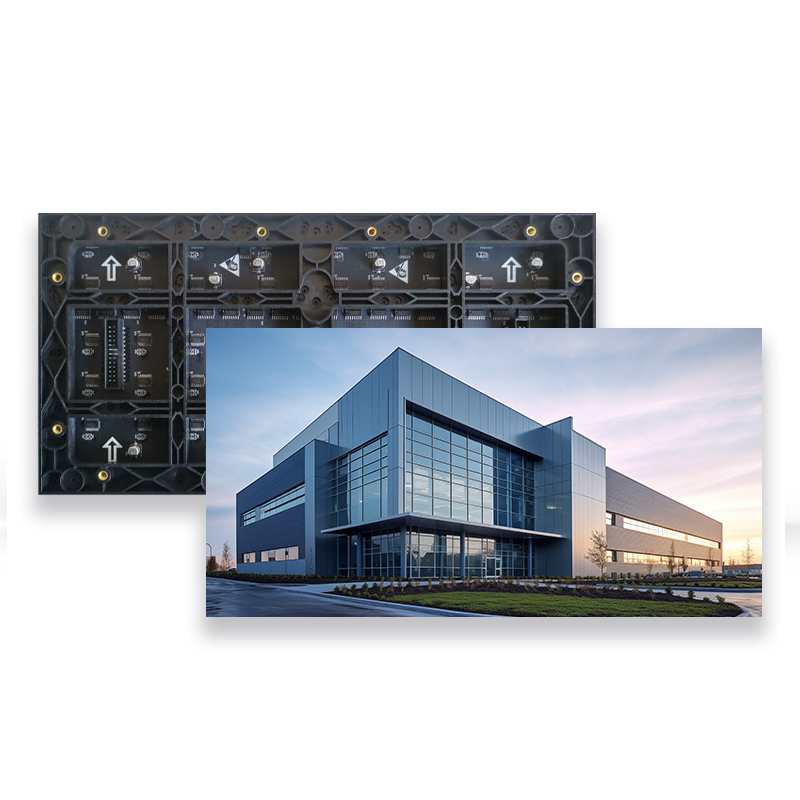

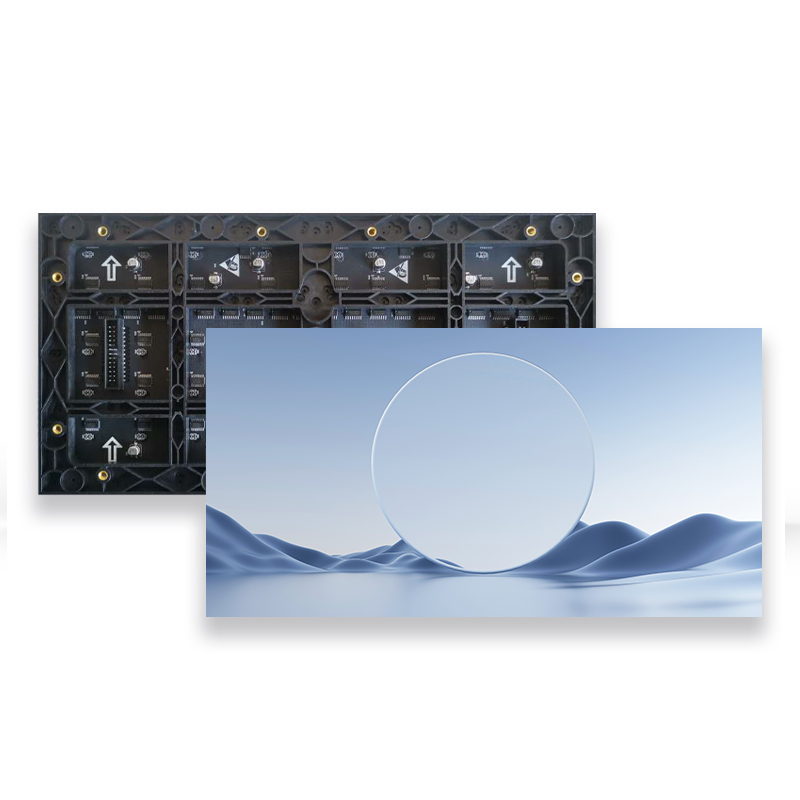

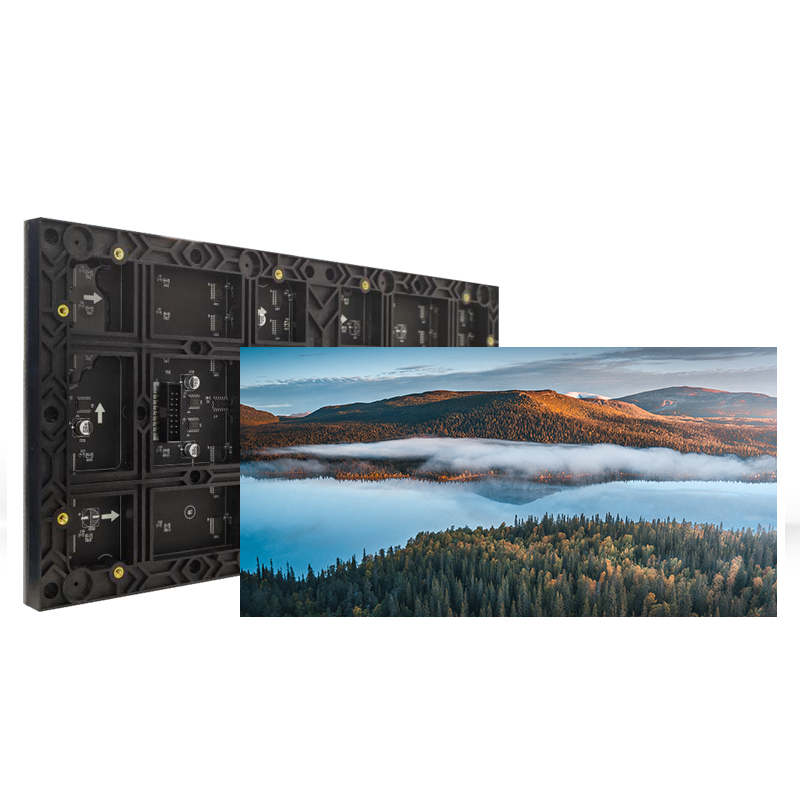

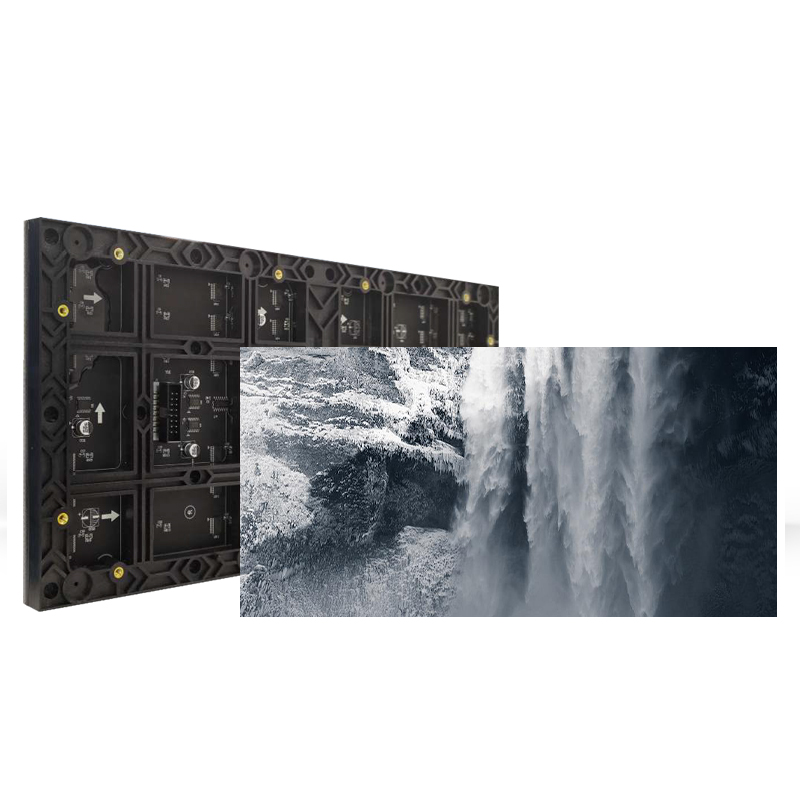

P2 Indoor full-color LED Screen is equipped with advanced LED technology to provide superior brightness and color uniformity, creating a visually impactful and immersive viewing experience. The high refresh rate ensures smooth, flicker-free content playback, making it ideal for dynamic, fast-paced content such as videos and animations.
| Parameter | P2 |
| Specificaations(mm) | P2BC-40S-16080 |
| Pixel Pitch(mm) | 2 |
| Display resolution（dots） | 160×80＝12800 |
| Physical Density (Pixels/ ㎡) | 250000 |
| LED Encapsulation | SMD1515 |
| Pixel specifications | 1R1G1B |
| Module Size(mm) | L320×H160×T15 |
| Module Weigth(g/pcs) | 400 |
| Driving mode | 1/40SConstant current drive |
| Module Consumption(W) | ≤14 |
| Max. Power Consumption(w/㎡) | ≤273 |
| Refresh Frequency (Hz) | 3840 |
| Brightness(cd/㎡) | 500(adjustable) |
| Optimum Viewing Angle | H:160° V:160° |
| Gray Scale (bit) | 12/6 |
| Frame Frequency (Hz) | ≥60 |
| Module Working Voltage(V) | 4.8-5.2 |
| Operating Temperature/Humidity（C/RH） | -10°C-+40°C10%RH-90%RH |
Introduction
