Pixel pitch: ≤3.91mm
Pixel density: ≥65,536 dots/㎡
Module size: 250mm × 250mm
Module resolution: ≥64 × 64
Brightness (cd/㎡): 1200, adjustable
Horizontal/vertical viewing angle: ≥160°
Refresh rate: ≥1920Hz
Frame rate: 60Hz
Module power consumption: ≤32W
Peak power consumption: ≤512W
Lifespan: ≥200,000 hours

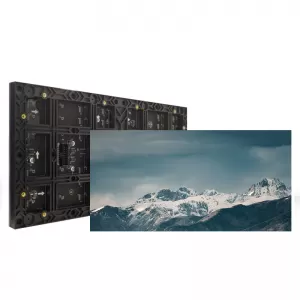

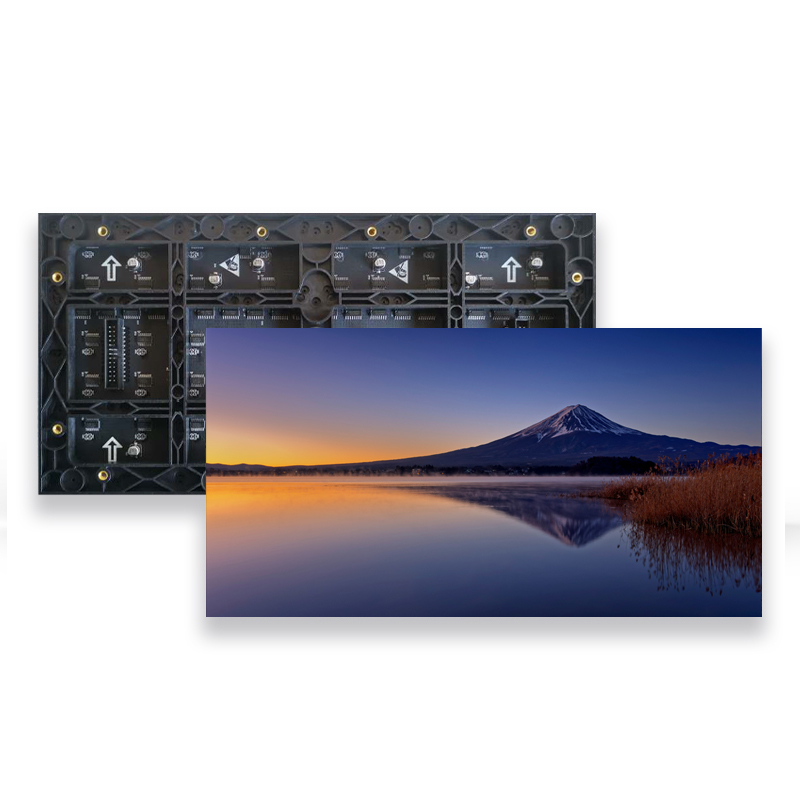

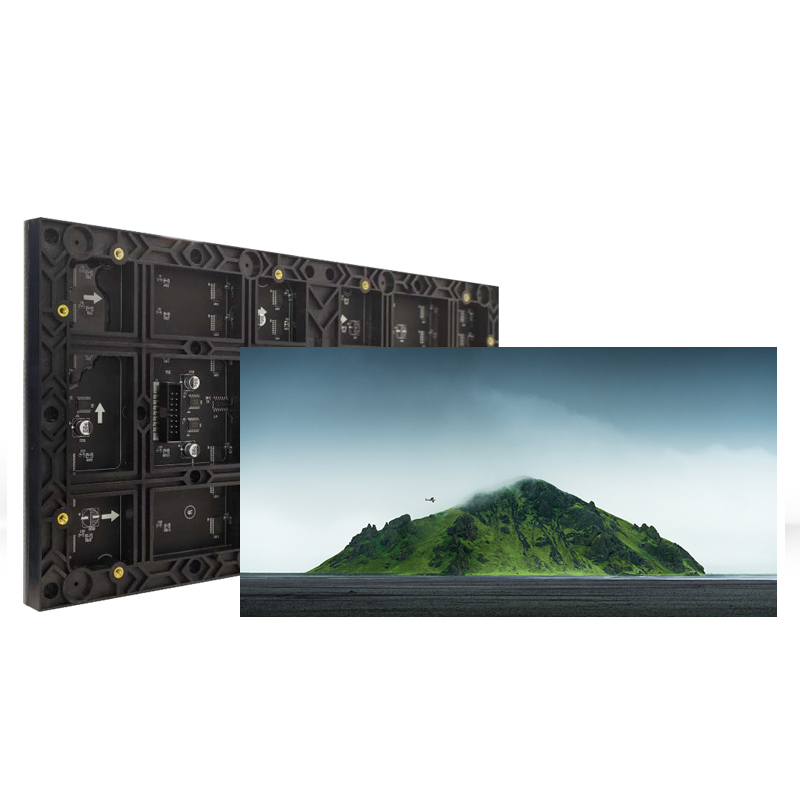

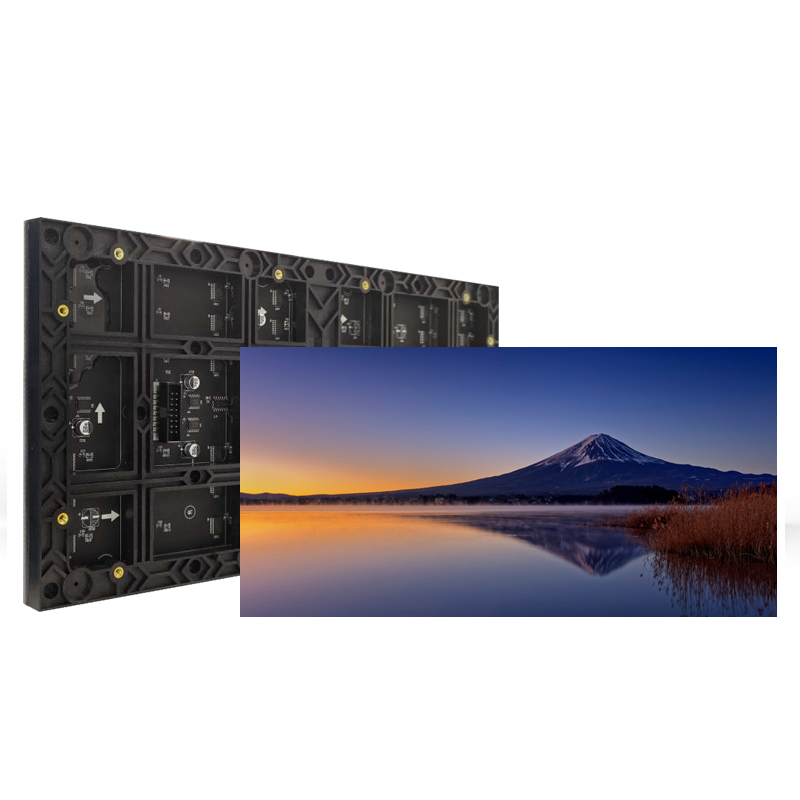

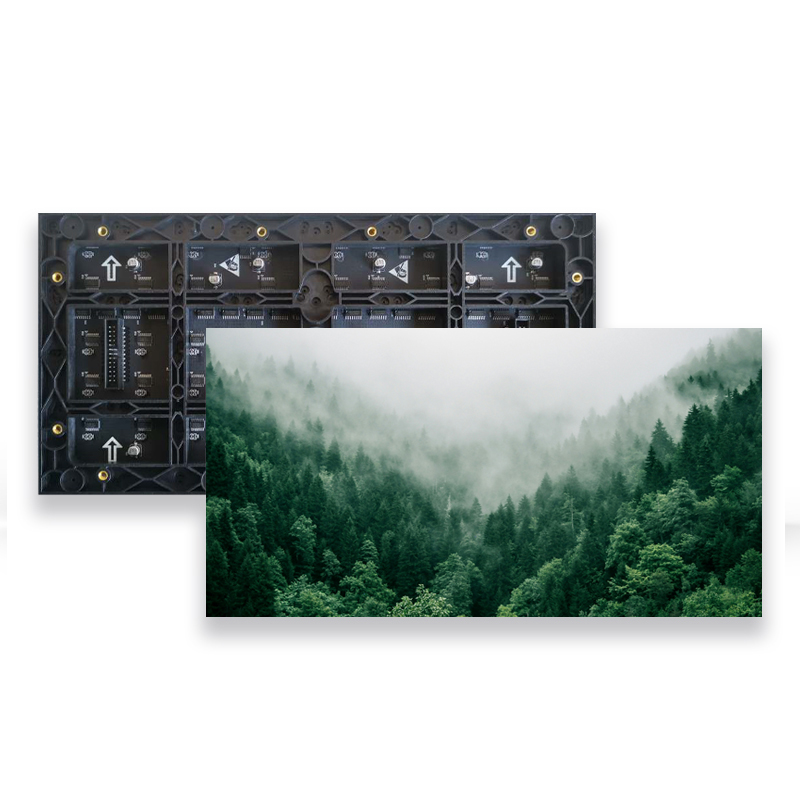

LED Screen Display
P3.91 Indoor full-color LED Screen offers unparalleled image quality, vibrant colors, and seamless performance, making it the perfect choice for a wide range of applications including retail spaces, corporate environments, event venues, and more.
With a pixel pitch of 3.91mm, this LED screen delivers stunning clarity and sharpness, ensuring that every detail is showcased with precision. Whether it’s high-resolution images, videos, or dynamic content, the P3.91 Indoor Full-Color LED Screen brings content to life with exceptional brightness and contrast, creating an immersive viewing experience for any audience.
| Parameter | P3.91 |
| Specificaations(mm) | P3.91BD-16S-6464 |
| Pixel Pitch(mm) | 3.91 |
| Display resolution（dots） | 64×64＝4096 |
| Physical Density (Pixels/ ㎡) | 65536 |
| LED Encapsulation | SMD2121 |
| Pixel specifications | 1R1G1B |
| Module Size(mm) | L250×H250×T15 |
| Module Weigth(g/pcs) | 460 |
| Driving mode | 1/16SConstant current drive |
| Module Consumption(W) | ≤32 |
| Max. Power Consumption(w/㎡) | ≤512 |
| Refresh Frequency (Hz) | 1920 |
| Brightness(cd/㎡) | 1200(adjustable) |
| Optimum Viewing Angle | H:160° V:160° |
| Gray Scale (bit) | 12/6 |
| Frame Frequency (Hz) | ≥60 |
| Module Working Voltage(V) | 4.8-5.2 |
| Operating Temperature/Humidity（C/RH） | -10°C-+40°C10%RH-90%RH |
Introduction
