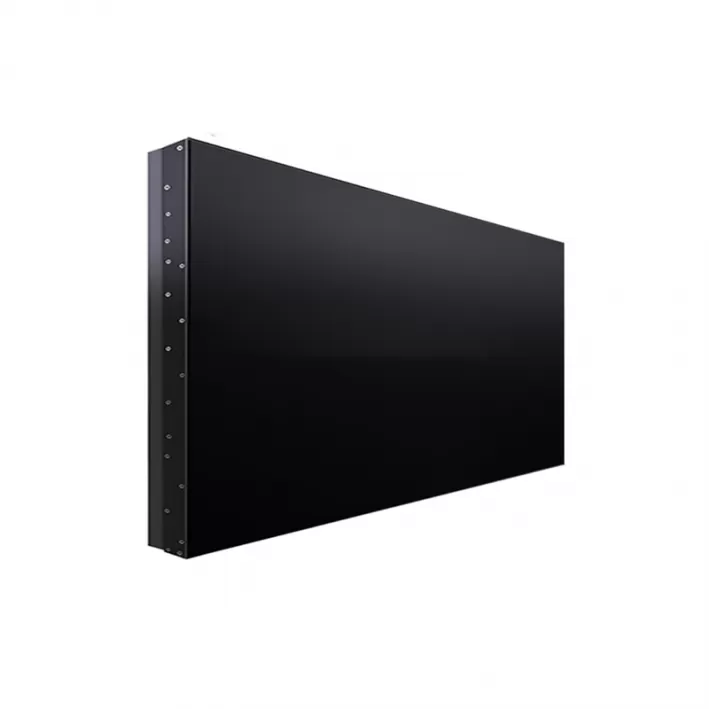

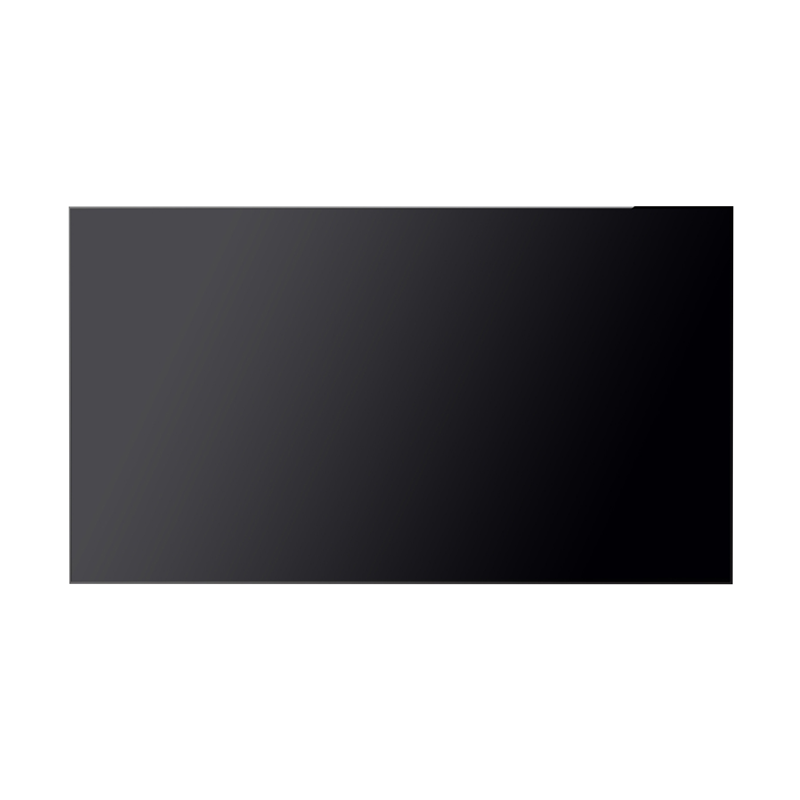

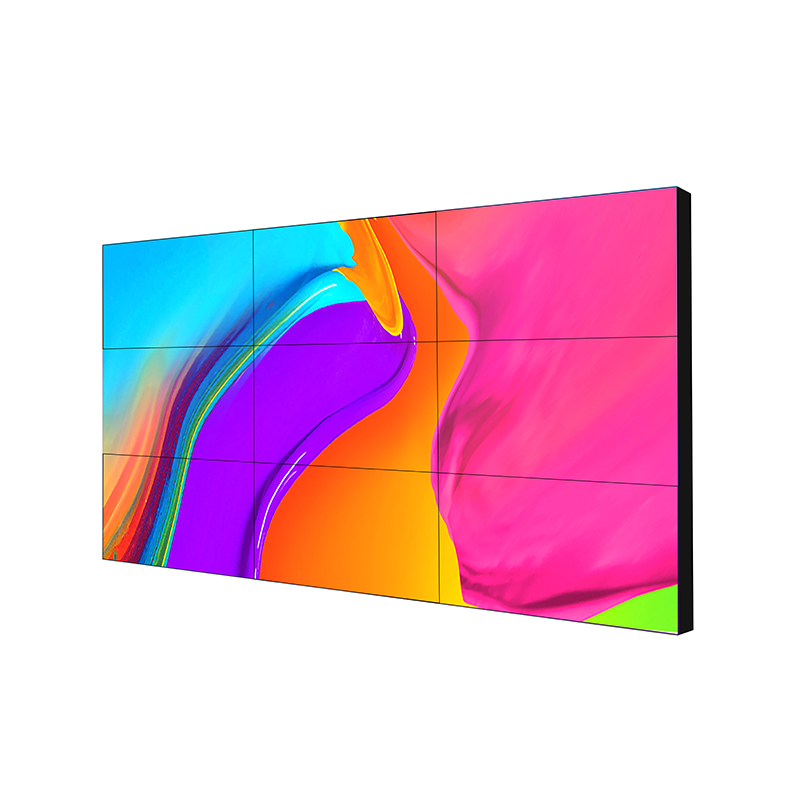

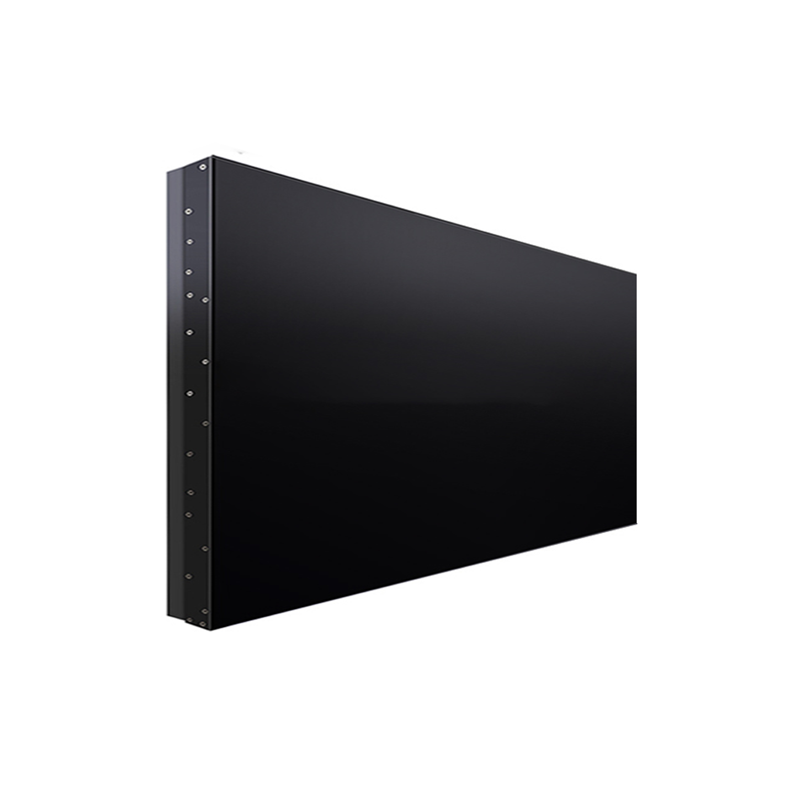

46-inch BOE 1.7mm LCD Video Wall

Overall Dimensions: 1020.02*574.61*70.5mm

Physical Bezel Width: 1.7mm (top/bottom), 1.7mm (left/right)

Brightness: 500 cd/㎡

Maximum Physical Resolution: 1080P

Contrast Ratio: 3500:1

Viewing Angle: 178°(H)/178°(V)

Aspect Ratio: 16:9

Voltage: AC100-240V/50-60HZ

Operating Temperature: 0℃~50℃

Power Consumption: 210W

Weight: 25KG


LCD Video Wall

Product Introduction

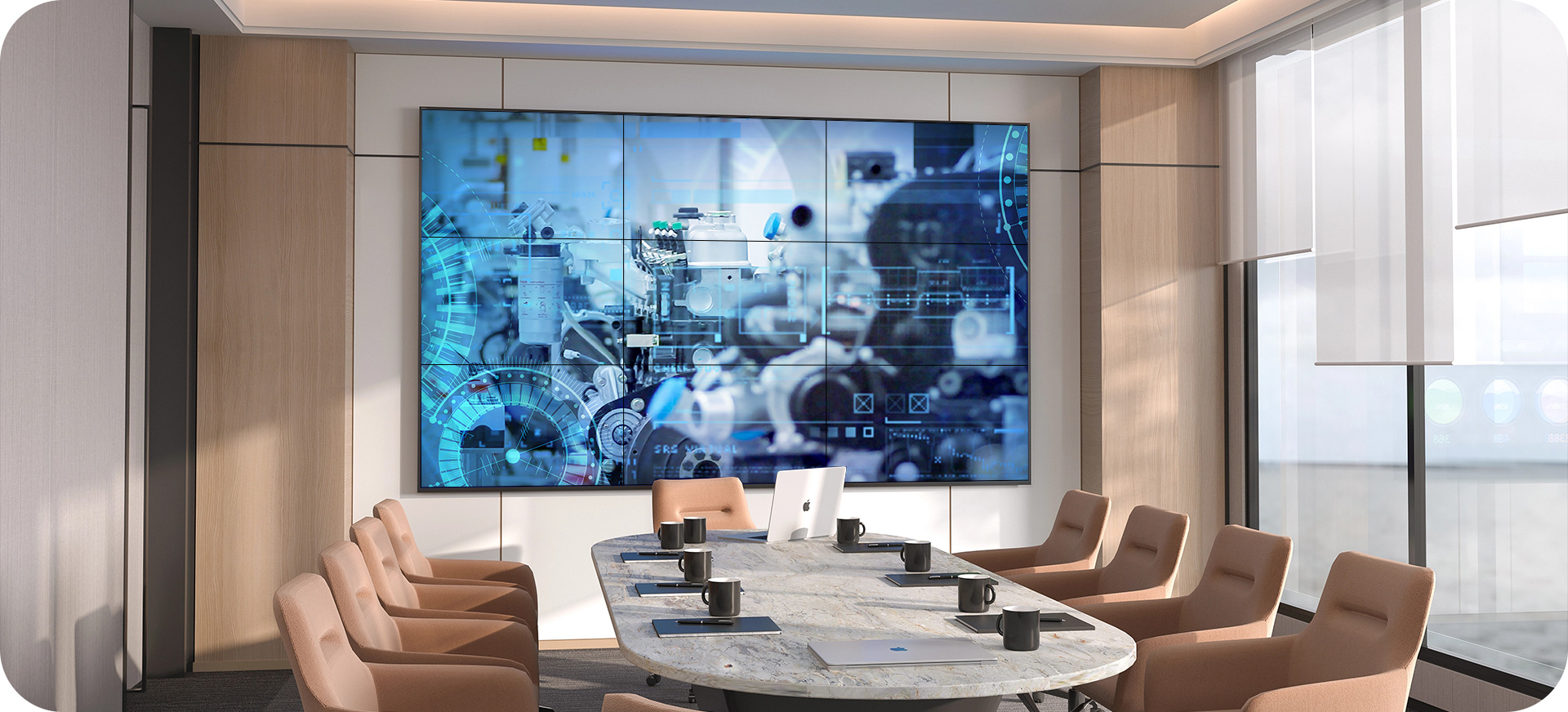

A 46-inch 1.7mm LCD Video Wall boasts an ultra-slim bezel for seamless content integration, advanced image gap reduction technology, wide viewing angles, easy color adjustments, and IP5x dust-proof certification for durability in diverse environments. Tiled LCD panels provide a flexible platform for a variety of 24/7 indoor video wall applications. With ultra-narrow and ultra-narrow bezel widths, our high-performance LCD product line is ideal for control rooms, conference rooms, educational facilities, retail spaces, and more.


Features

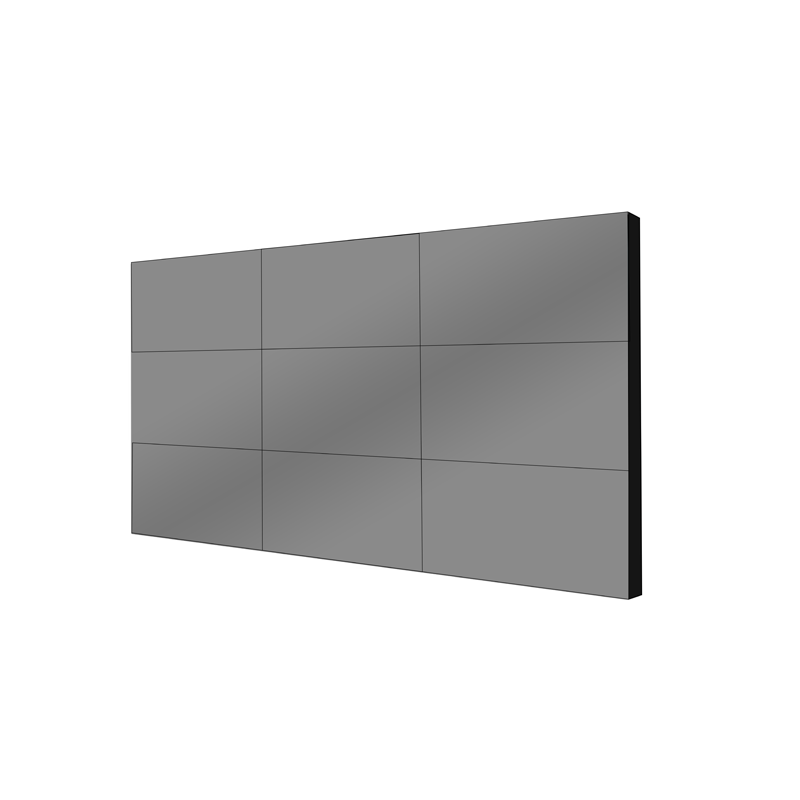

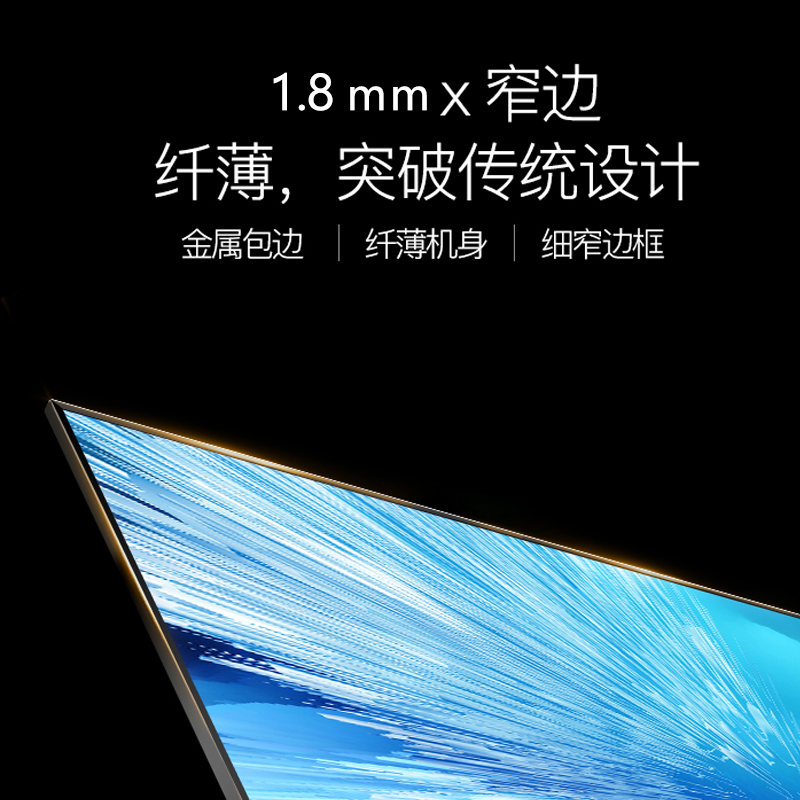

Seamless Large Screens with Extreme-Narrow Bezel

The ultra-slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

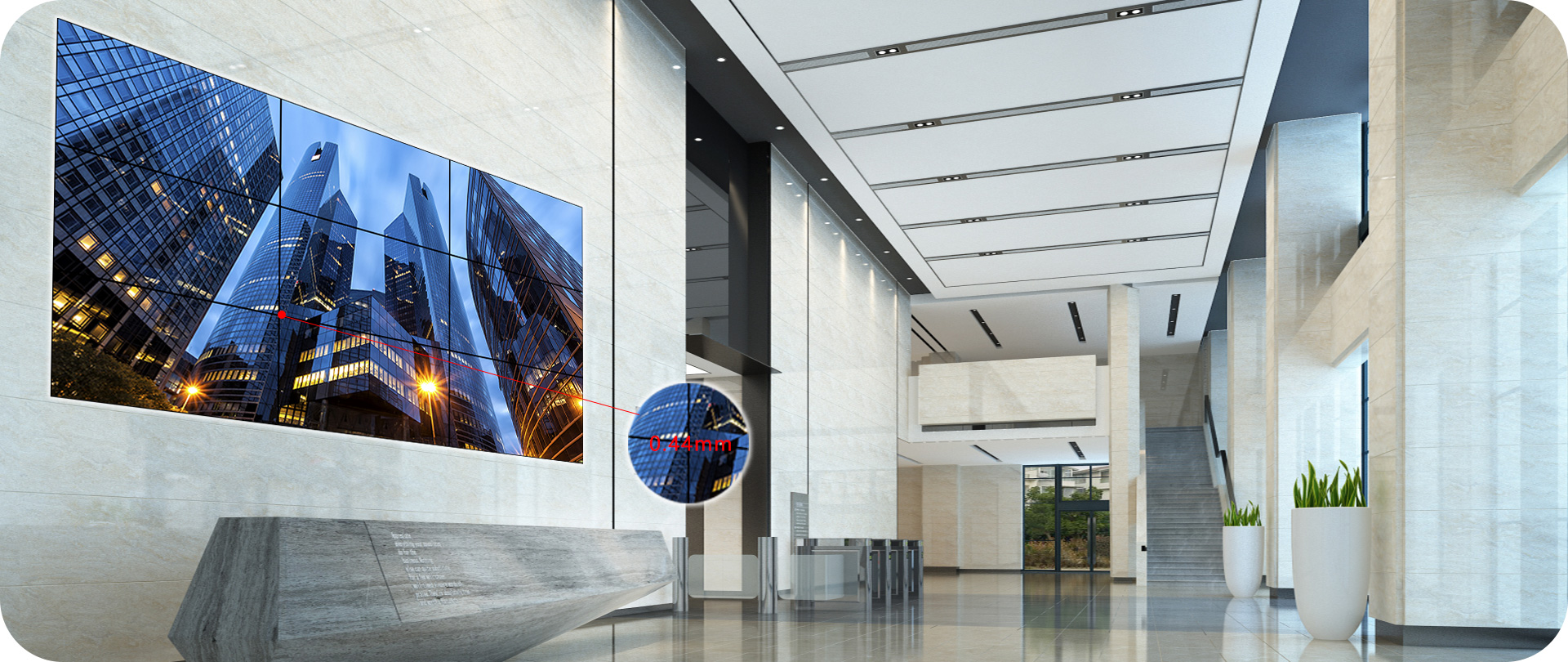

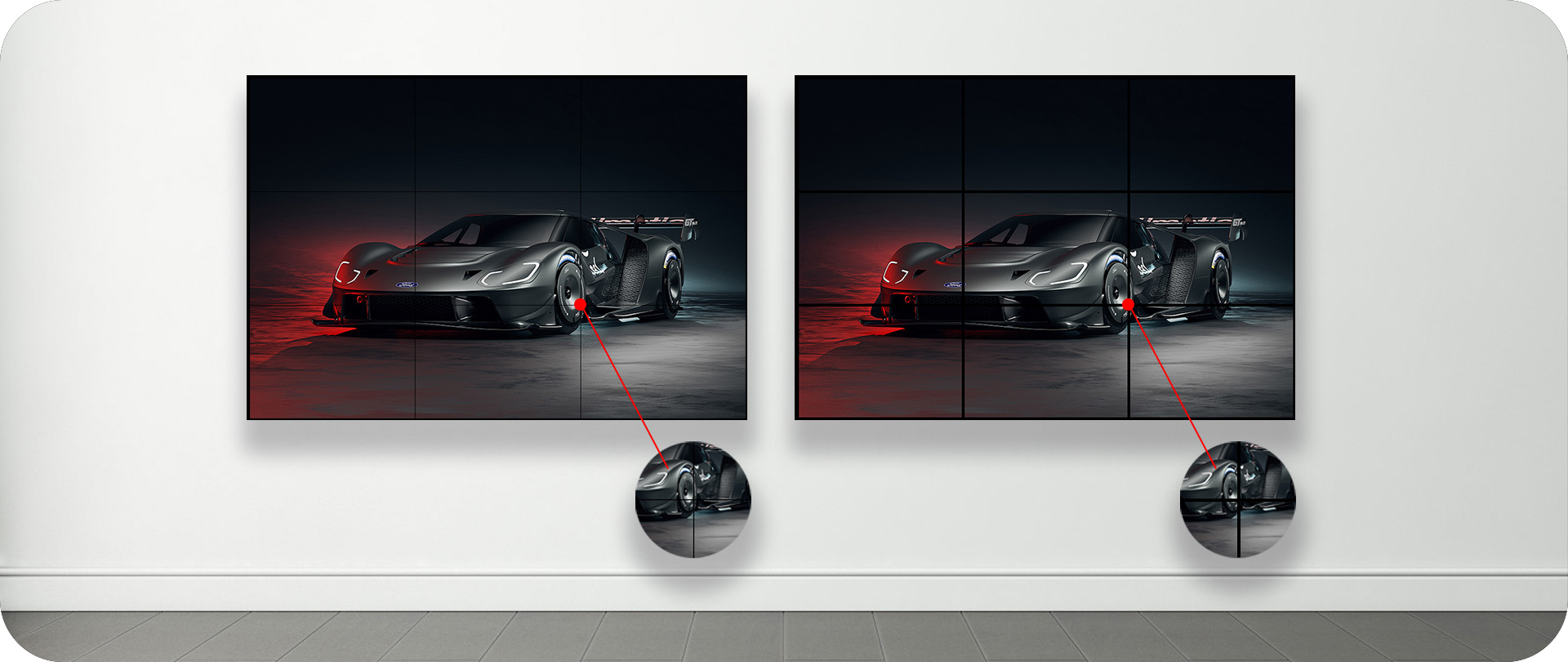

Image Gap Reduction

The VH7J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience

Higher Viewing Angle

Large screens are usually positioned higher than human eye level. A wide half-luminance angle (40°) enables effective picture quality for video walls. The viewing angle of the VH7J-H is high enough to display vivid colors throughout the screen without any color distortion.

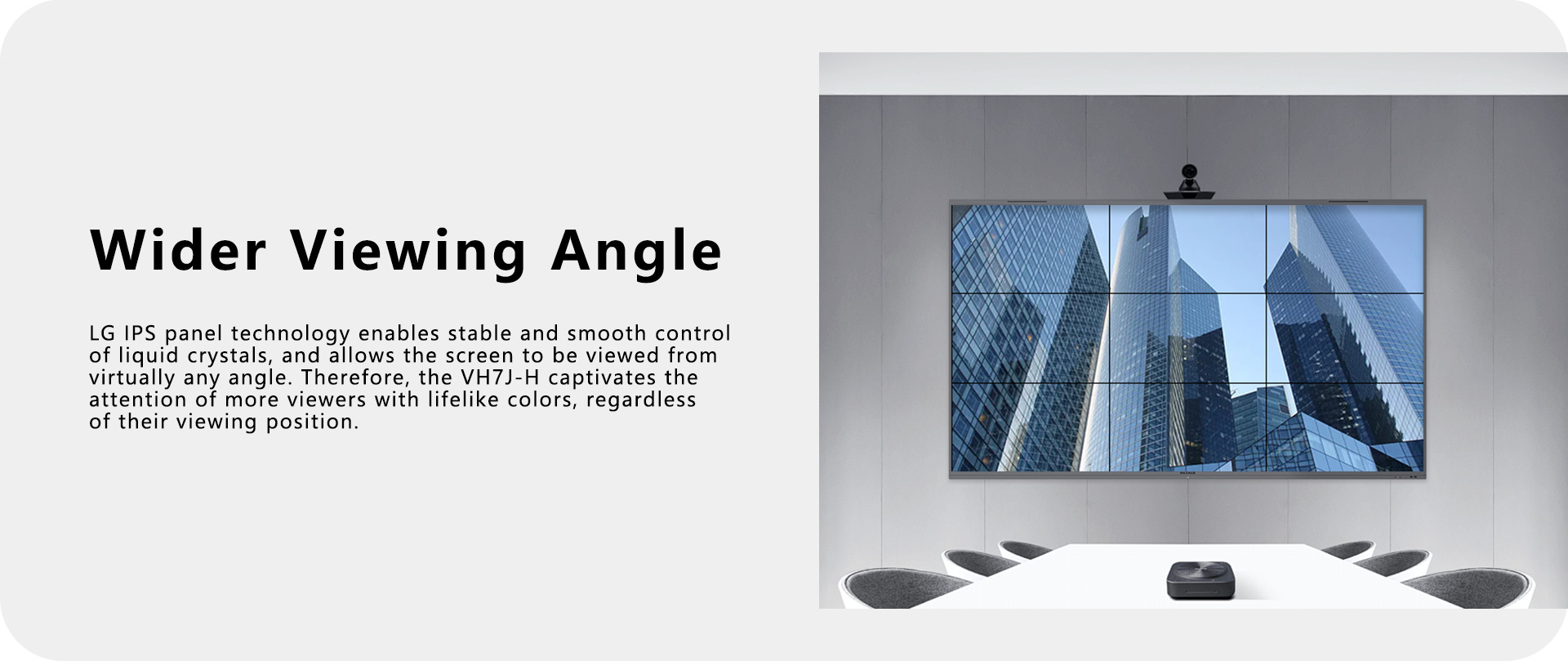

Wider Viewing Angle

LG IPS panel technology enables stable and smooth control of liquid crystals and allows the screen to be viewed from virtually any angle. Therefore, the VH7J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

Easy Color Adjustment

Depending on the content, the color the temperature of the display can be easily adjusted in increments of 100K using a remote control.

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in "full-white" mode, but the VH7J-H allows you to modify each value of grey. scale to achieve more detailed and precise white balance adjustment.

Flexible Content Creation

You can play multiple different videos simultaneously through a web application, and use CSS (cascading style sheet)transition effects to add various animation effects (such as scaling or rotation) to the content. Live streaming is also available, providing the flexibility to organize and diversify content without capacity constraints.

Conformal Coating

Video walls in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting the video wall from salt, dust, iron powder, humidity, etc

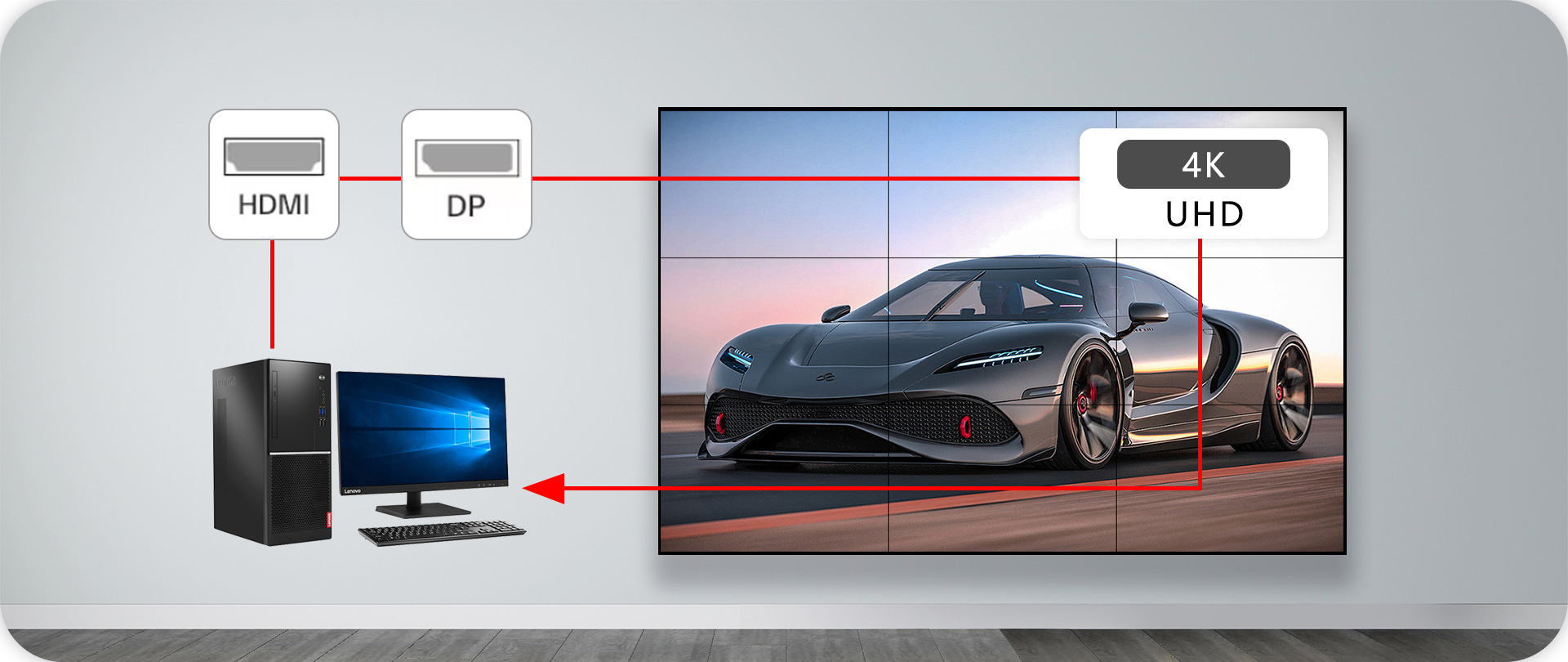

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmware at once. Also, through a UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need for DisplayPort MST.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation.
